Static Mixers

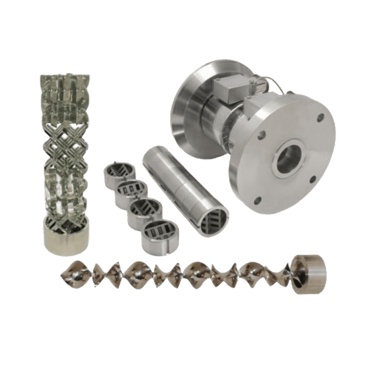

Static Mixer for Injection/Extrusion in Polymer Homogenization

The SMB Extrusion Melt Mixer homogenizes the polymer right at the die inlet. Benefits include:

  • Reduction in the use of colorants / additives while maintaining excellent density, viscosity and color.

  • Increases the admission of recycled material

  • Uniformly melted flow in the die

  • High reduction of rejects even in cold

  • Rapid reduction of the investment cost of the mixer

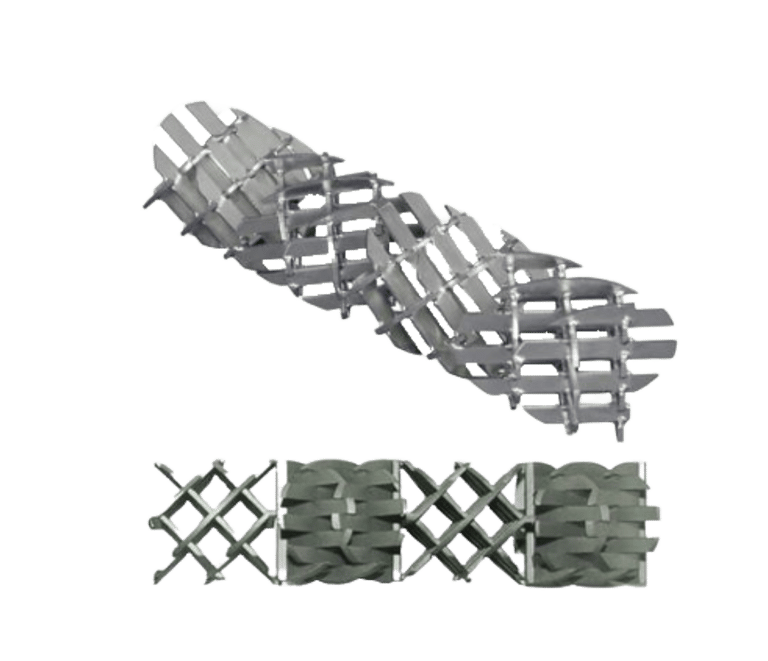

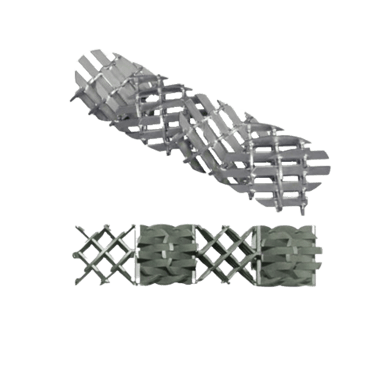

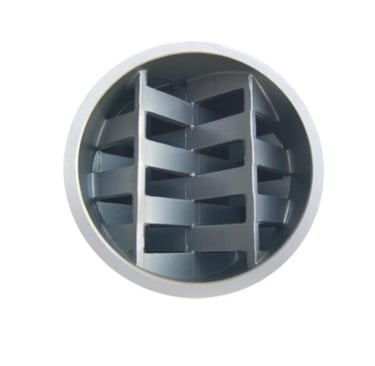

GXR Mixing Elements for Mixing Polymers, Adhesives, Silicones, Resins

GXR static mixing elements are ideal for mixing/dispersing viscous fluids. The mixing elements are virtually indestructible, and when cleaning is required, they can be easily removed by pressing them out of the housing without damage. Applications include:

  • Mixing polymer melts for plastic injection, molding, and extrusion

  • Mixing high viscosity 2-component blends such as adhesives, polysulfides, silicones, and epoxy resins

  • Mixing polyols with gas, blowing liquid agents, and isocyanates

GX elements have been used successfully in laminar flow applications for over 25 years. Applications include:

The GX elements have been successfully used in laminar flow applications for over 25 years. The applications include:

  • Mixing highly viscous melts and liquids

  • Mixing liquids with large differences in viscosity

  • Mixing liquids with large differences in volume

  • Development of chemical reactions under plug flow conditions

  • Improving heat transfer in laminar flow

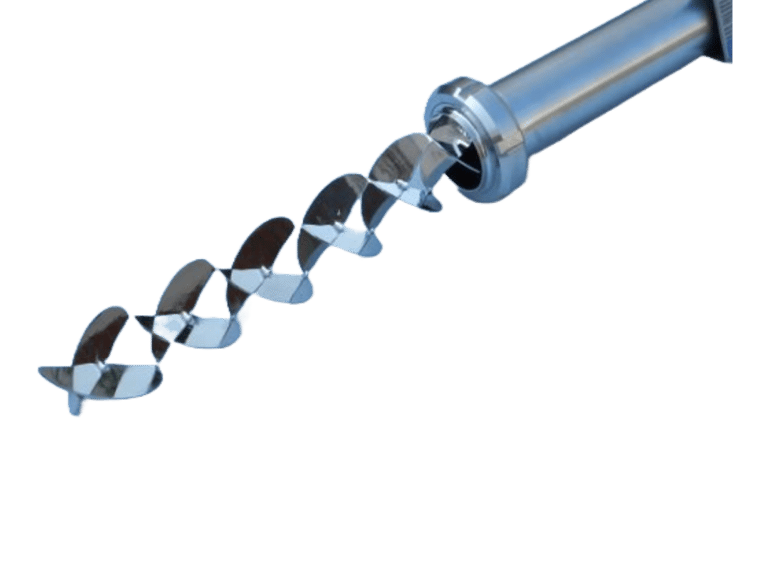

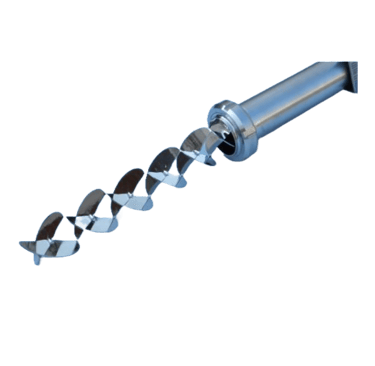

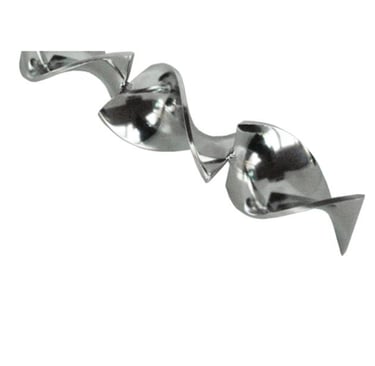

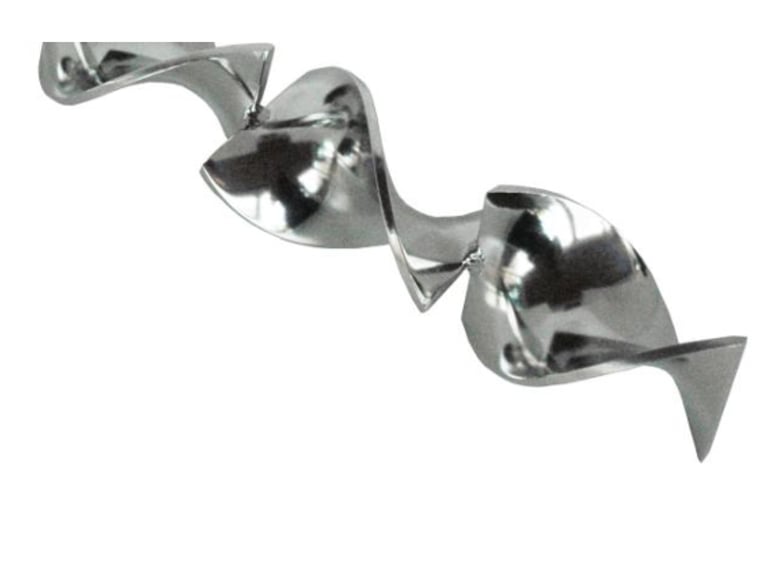

Helical Mixing Elements for Simple Mixing Applications

The HT static mixer is a product designed for low performance requirements, used in simple mixing applications in laminar and turbulent flow for more than 37 years. The helical mixer design has been the pioneer in this industry. Applications:

  • Simple mixing applications in laminar and turbulent flow

  • Economical in diameters less than 2”

  • Low pressure drop

  • Easy to clean

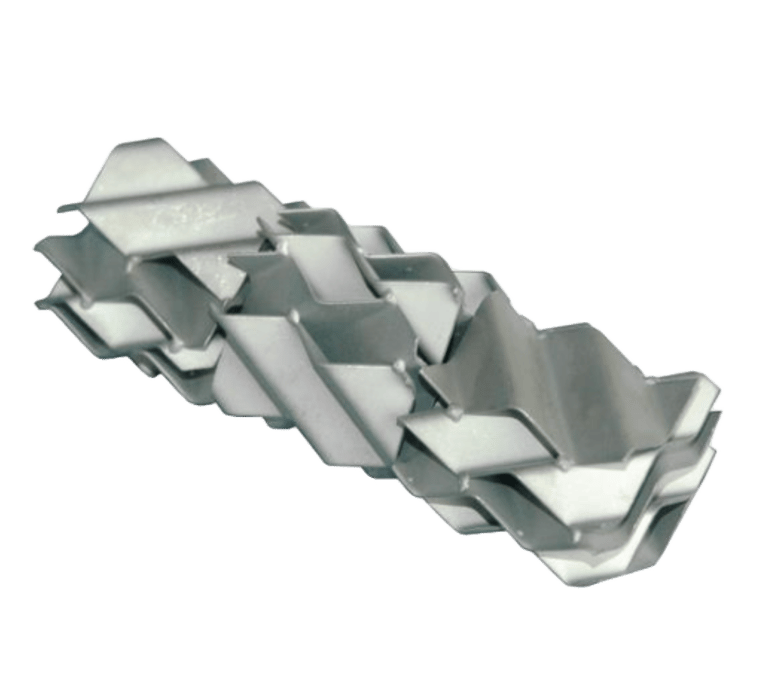

GV Mixing Elements for Turbulent Flow Applications

The highly efficient GV Mixer has been used in turbulent flow applications for over 40 years. Applications include:

  • Mixing low viscosity liquids in a very short space

  • Mixing high viscosity additives in low viscosity streams

  • Mixing very low concentration additives in large flow masses

  • Dispersion of immiscible liquids

  • Contacting gases and liquids for mass transfer

GXMet Mixers for Turbulent and Laminar Flow Applications

The GXMet static mixer is a medium performance design, used in turbulent and laminar flow, whose applications include:

  • Increasing heat transfer in laminar flow

  • Generating plug flow conditions in laminar flow

  • Large volumes of mixture where a very low pressure drop is required

  • Mixing solutions with solids entrainment

  • Mixtures requiring CIP equipment for food

  • High viscosity mixtures with low pressure drop
